Junhua Melamine Foam Insulation - Integrated Lightweight Fire-Retardant and Noise-Reduction Solution for Green Buildings

Junhua Melamine Foam Insulation - Integrated Lightweight Fire-Retardant and Noise-Reduction Solution for Green Buildings

As the global construction industry accelerates its low-carbon transition, public buildings, transportation hubs, data centers, and other projects demand thermal insulation materials that meet multiple requirements: thermal insulation, noise reduction, fire protection, lightweight design, and environmental friendliness. Traditional fiberglass cotton, mineral wool, and polyurethane insulation materials can no longer meet the standards of next-generation green buildings.

Junhua has developed melamine foam thermal insulation and sound-absorbing integrated materials through its proprietary foaming process. With ultra-low density, intrinsic flame retardancy, low VOC emissions, and no fiber dust, it has become a core new insulation substrate for green engineering projects.

I. Traditional Thermal Insulation Materials Cannot Meet Modern Building Development Needs

Today's large urban complexes, airports, high-speed rail stations, and exhibition centers extensively use glass curtain walls, skylights, and high-ceiling roof designs. While natural light enhances spatial quality, it also creates serious thermal management challenges: significant solar radiation accumulation in summer leads to surging air conditioning cooling loads and substantial increases in annual building energy consumption. Meanwhile, global fire safety regulations continue to tighten and indoor health standards are being upgraded, making the shortcomings of traditional insulation materials increasingly apparent:

● Fiberglass: Construction generates fiber dust, requiring full protective equipment; long-term use carries risks of fiber shedding and contamination.

● Mineral wool insulation: High self-weight increases building structural load; installation in elevated areas and rooftops is cumbersome.

● Polyurethane foam: Insufficient fire rating; prone to melting and dripping in high-temperature environments; combustion produces large amounts of toxic smoke.

● Rubber-plastic insulation: Poor stability in high-temperature conditions; only suitable for normal-temperature pipeline scenarios.

The market urgently needs a multi-functional insulation substrate that integrates lightweight properties, efficient thermal insulation, excellent fire protection, noise reduction, and environmental friendliness. Junhua melamine foam addresses this with differentiated competitiveness.

II. Core Performance Advantages of Junhua Melamine Foam

Junhua melamine foam uses melamine resin as the base material and is formed through a proprietary chemical foaming process, creating a unique three-dimensional open-cell network lightweight foam structure. This three-dimensional microporous network structure can simultaneously block solid heat conduction and weaken internal air convection heat transfer, achieving dual effects of thermal insulation and noise absorption. The production process strictly controls harmful substances, achieving low volatile organic compound emissions and zero formaldehyde release. It perfectly fits various green building certification projects such as LEED and green building evaluation standards, meeting healthy building material selection standards.

Core Parameter Comparison of Mainstream Thermal Insulation Materials



(1) Ultra-light Weight, Significantly Reducing Building Load

Junhua melamine foam density can be as low as 8-12 kg/m³. Compared with common insulation materials on the market, it is only 1/3 of ordinary glass wool and 1/10 of rock wool materials. The lightweight characteristics bring multiple practical advantages to engineering projects.

First, it greatly reduces the additional load on the overall building. For weight-sensitive areas such as large-span roofs, suspended ceiling cavities, and glass curtain wall interlayers, it does not add extra burden to the main steel structure or curtain wall frame, reducing structural design costs. Second, low-density materials can effectively compress logistics and transportation costs. Under the same insulation volume, the overall material weight is lower, reducing transportation capacity consumption. On-site construction is easier as the material is light and soft, allowing a single person to complete cutting, laying, and fixing operations, reducing labor intensity and improving installation efficiency.

Besides new construction, the advantages are particularly prominent in old building energy-saving renovation projects. The original building main structure design has limited load margin. Using Junhua melamine foam, in most cases, no additional structural reinforcement is needed, simplifying the renovation process, shortening project schedules, and expanding the material's applicable boundaries.

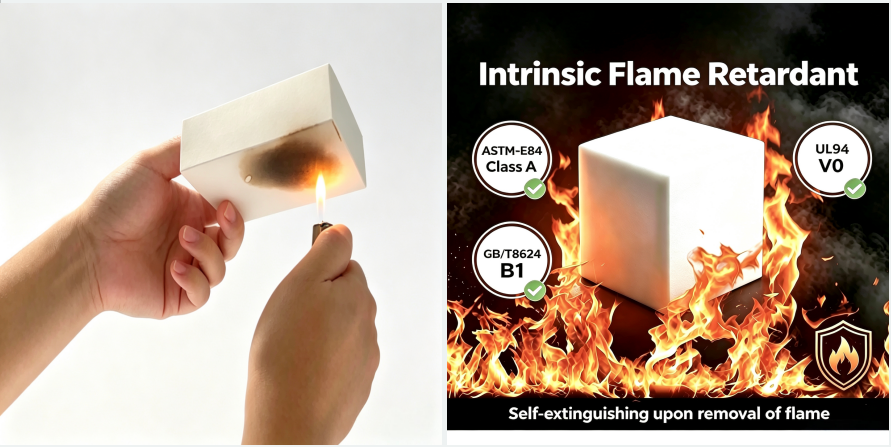

(2) Intrinsic Flame Retardant Substrate, Safety Assurance for High-Grade Venues

Unlike many insulation materials that rely on added flame retardant additives to achieve fire protection effects, Junhua melamine foam is an intrinsic flame retardant substrate. The molecular structure of the material inherently possesses flame retardant properties, natively achieving the UL94 V0 highest flame retardant rating and meeting B1-rated difficult-to-combust standards. No additional flame retardant additives are needed during production, eliminating issues of flame retardant migration and time-dependent degradation.

When the material comes into contact with open flames, only surface carbonization occurs without melting or dripping, eliminating the risk of dripping materials igniting surrounding building materials and causing secondary fire spread. During combustion, smoke generation is low with minimal smoke toxicity, effectively gaining time for personnel evacuation and escape during fires. The material's fire performance is stable and can fully match construction standards for airports, rail transit stations, data machine rooms, large commercial complexes, and other high fire rating venues, solving the pain points of fire protection material selection in public building projects.

(3) Integrated Thermal Insulation + Sound Absorption Functions, Combined Heat and Sound Management

Traditional insulation materials mostly have single functions, often focusing only on thermal insulation performance. Noise reduction requires additional sound-absorbing panels, increasing material types and construction processes. Relying on its three-dimensional open-cell microporous structure, Junhua melamine foam truly achieves integrated thermal and acoustic performance, with a single material simultaneously solving both building insulation and noise control needs.

At the thermal insulation level, the numerous fine pores inside the foam trap still air, efficiently inhibiting heat exchange. In winter, it can retain indoor heating heat and reduce heating equipment energy consumption. In summer, it effectively blocks outdoor solar radiation heat from entering indoor spaces, alleviating air conditioning system working pressure, significantly reducing HVAC system overall energy consumption, and helping buildings achieve energy-saving and carbon-reduction goals.

At the noise reduction level, the open-cell structure can efficiently absorb airborne noise, with excellent absorption effects on mid-to-high frequency noise. It can effectively weaken reverberation noise generated by ventilation equipment, air conditioning ducts, electromechanical equipment, and large passenger flow activities, reduce spatial echo, optimize indoor acoustic environments, and improve comfort in venues, machine rooms, and public indoor spaces.

III. Five Major Green Building Application Scenarios

Junhua melamine foam has comprehensive performance and can be customized for insulation and noise reduction integrated solutions for different building structures and working conditions through various processing methods such as cutting, lamination, and molding. It has been widely implemented in many key engineering projects.

(1) Skylight Thermal Insulation Layer

Airports, high-speed rail stations, exhibition centers, and large commercial complexes extensively use glass skylight structures. Solar radiation heat easily penetrates through glass into indoor spaces, causing indoor overheating. Using Junhua foam as an interlayer insulation component filled within the skylight structure can efficiently block solar radiation heat, reduce air conditioning system running time, and save power consumption. Thanks to the material's ultra-light properties, it does not increase the overall load-bearing pressure of curtain walls. The intrinsic flame retardant property also simultaneously improves the overall fire safety rating of the skylight area, achieving the triple goals of energy saving, safety, and lightweight design.

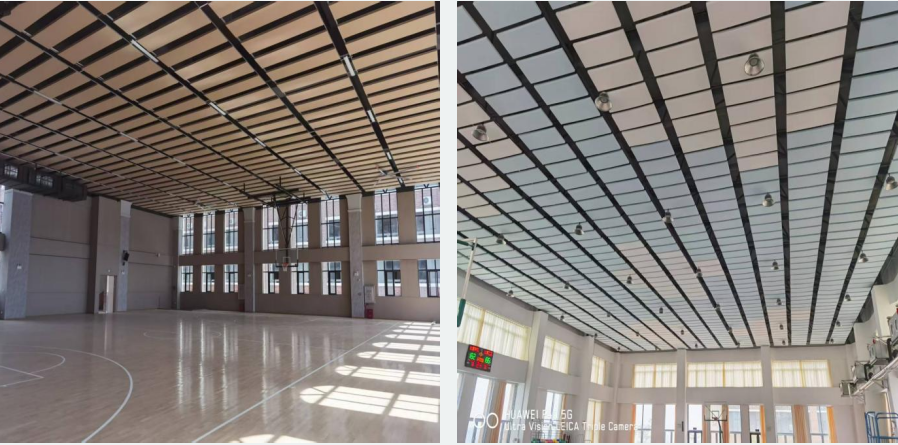

(2) Roof and Suspended Ceiling Cavity Insulation

Metal roofs of high-ceiling terminals, sports venues, and large exhibition halls are prone to accumulating high temperatures under sunlight, with heat continuously conducting downward to indoor spaces, causing excessive temperatures in upper indoor areas. Junhua foam can be directly laid on the inner side of metal roofs and inside suspended ceiling cavities, blocking downward heat conduction, balancing indoor temperature differences in tall spaces, and improving thermal comfort in large spaces. At the same time, it absorbs noise from roof wind vibration and equipment, reducing spatial reverberation. The material is lightweight and does not add extra burden to roof steel structures, with convenient installation suitable for large-span tall buildings.

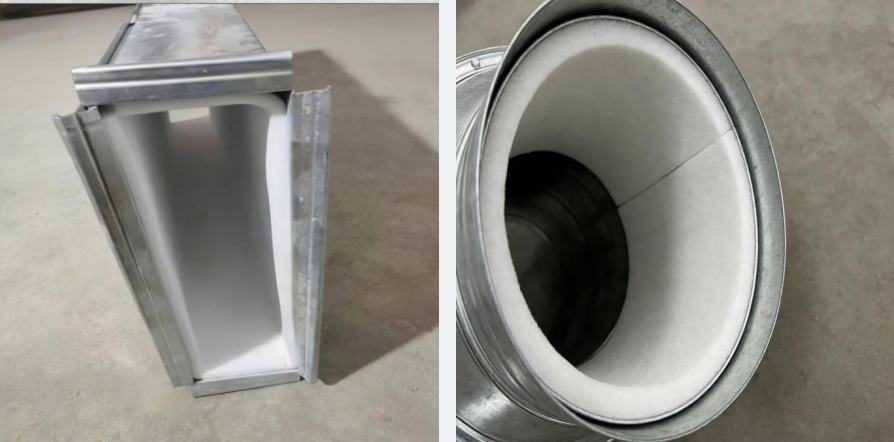

(3) HVAC Duct Wrapping and Insulation

Duct insulation is a very mature application field for Junhua melamine foam. Traditional ducts often use glass wool or rock wool wrapping, where fibers easily shed into the air supply system and diffuse into various rooms with airflow, polluting indoor air. Junhua foam has no fiber shedding and no dust pollution, ensuring clean air supply. The material is easy to process and cut, allowing flexible on-site processing according to duct dimensions. It also has excellent dual performance of fire protection and sound absorption. While achieving pipeline insulation and condensation prevention, it weakens duct vibration noise from fan operation and avoids duct running noise from spreading to machine rooms and public areas. It is very suitable for ventilation systems in hospitals, office buildings, and large venues that require air cleanliness.

(4) Transportation Hub Equipment Room Thermal Insulation and Noise Reduction

Electrical machine rooms, UPS power distribution rooms, and data control rooms supporting stations and airports have complex working conditions with three hard requirements: fire safety, temperature control, and noise management. Continuous operation of electromechanical equipment generates large amounts of heat and noise. Once a fire occurs in the machine room, fire safety is crucial. Junhua foam can meet multiple working condition requirements with a single material, without needing to purchase insulation cotton, sound-absorbing panels, and fire boards simultaneously. It simplifies project building material matching, reduces cross-construction processes of different materials, effectively shortens overall construction cycles, and reduces comprehensive project management costs.

(5) Emerging Track: Data Centers and New Energy Infrastructure

With the rapid development of the digital economy, AI computing machine rooms, energy storage supporting buildings, and photovoltaic supporting workshops continue to expand. Data center servers operate 24 hours a day, putting forward strict standards for fire safety, space temperature control, and equipment noise reduction. Once a fire occurs, the consequences are serious. Energy storage power stations and new energy workshops also need to balance fire protection, thermal insulation, and noise reduction with lightweight design. The industry's demand for safe, reliable, low-carbon, energy-saving, and quiet new building materials is growing rapidly. This has become the core incremental market for Junhua melamine foam in the future, and the material is being widely used in computing infrastructure and new energy supporting engineering construction.

IV. Complete Product Series Matrix, Covering Differentiated Working Conditions

Engineering project environments vary greatly. Some project environments are humid, some require special-shaped processing, and some pursue low-carbon certification. For different usage conditions such as public buildings, rail transit, industrial equipment, underground humid environments, recycled low-carbon projects, and high-temperature special-shaped forming, Junhua has built six standardized product series to achieve full coverage of differentiated scenarios.

Standard Acoustic Grade: For general buildings, rail transit, high-end public building indoor enclosed spaces, and industrial plant noise management, combining insulation, sound absorption, and fire protection. It is the general selection for most engineering projects.

Water-Repellent Moisture-Proof Grade: After special water-repellent modification treatment, it is suitable for underground spaces, humid machine rooms, and waterside areas, resisting high-humidity environment impacts and reducing performance degradation from moisture.

Environmental Grade: Strictly controlling raw materials and emission indicators, suitable for low-carbon certification projects and sustainable building engineering, helping projects obtain green building-related certifications.

Thermoforming Grade: Supporting high-temperature heat setting, suitable for high-temperature equipment wrapping and special-shaped structure custom processing. It can be processed into arc-shaped and irregular components, adapting to complex structures of equipment and special-shaped cavities.

All series materials support board cutting, molding, and composite board processing. Enterprises can customize special-shaped components according to project drawings and on-site working condition needs, adapting to diversified construction schemes. Whether it is factory prefabricated components or on-site cutting construction, both can be achieved, providing designers and constructors with sufficient selection freedom.

V. Multi-Functional Composite Insulation Materials Become the Main Industry Development Direction

Reviewing the development history of the building insulation industry, early insulation material selection mostly only took the thermal conductivity coefficient as the core assessment indicator, prioritizing the single function of thermal insulation and energy saving. However, with the continuous implementation of green buildings and low-carbon building systems, future building insulation material selection will no longer be limited to the single thermal insulation function. The market will simultaneously comprehensively assess four core dimensions of materials: thermal performance, acoustic processing capability, fire safety rating, and low-carbon environmental protection level.

Insulation materials that only excel in a single function will increasingly struggle to meet high-end project needs. Multi-functional composite insulation materials integrating insulation, sound absorption, fire protection, lightweight design, and environmental friendliness will become the mainstream development direction of the industry.

Junhua focuses on five major tracks: green public buildings, transportation infrastructure, industrial energy saving, data centers, and high-end manufacturing. It continues to invest in research and development resources, iterating the melamine foam formula system and foaming forming process, continuously optimizing product weather resistance, moisture resistance, acoustics, and other performance. With lightweight multi-functional insulation and sound-absorbing materials, it faces various new construction and renovation engineering projects, creating safer, quieter, and more low-carbon energy-saving indoor space integrated solutions.

Conclusion

Modern green building thermal insulation and noise reduction belong to typical multi-disciplinary cross-system engineering, involving thermal engineering, acoustics, fire safety, structural engineering, and environmental health. Relying solely on traditional insulation materials is difficult to simultaneously achieve the ideal comprehensive effects of insulation, noise reduction, fire protection, weight reduction, and health. Junhua melamine foam integrates multiple core advantages such as efficient thermal insulation, full-frequency sound absorption, ultra-light weight, intrinsic flame retardancy, and high-adaptability processing, providing green buildings with stable, efficient, and compliant integrated thermal-acoustic management solutions.

Domestic building low-carbon-related standards continue to be upgraded. The market scale of green buildings and ultra-low energy consumption buildings continues to expand, and the market demand for high-performance environmentally friendly insulation materials continues to be released. With its comprehensive performance advantages, Junhua high-performance melamine foam materials will undoubtedly obtain more extensive applications in various high-end green building engineering projects such as airports, high-speed rail stations, large public buildings, data centers, and new energy infrastructure in the future.
